Tutorial: How to Stream Moonshot Live Prices

In this tutorial, you will learn how to create a simple React application to stream live prices from the Moonshot protocol using WebSocket and Bitquery's Moonshot APIs.

You can find the complete repo here

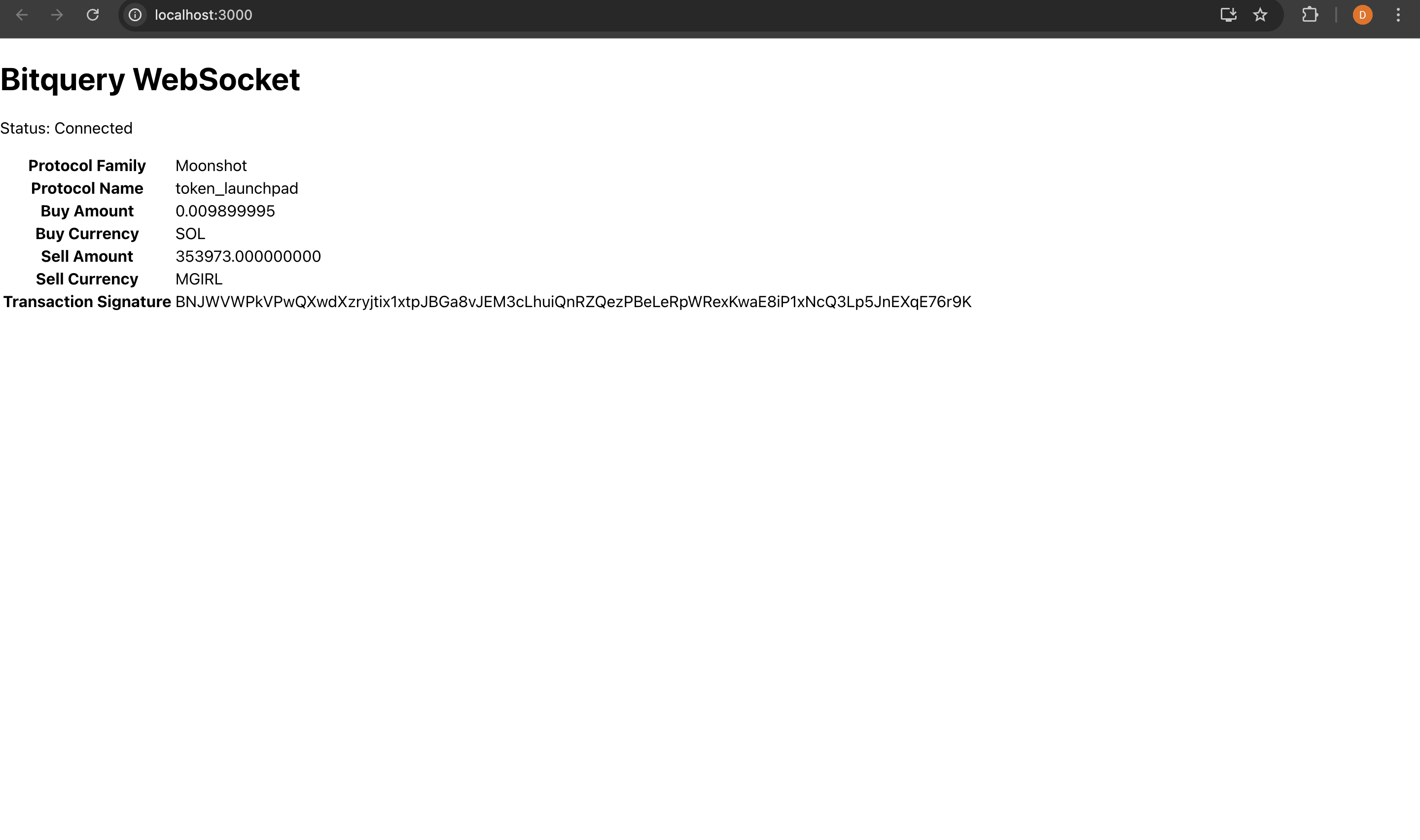

The final output would look something like this

Prerequisites

Basic knowledge of React and JavaScript.
Node.js installed on your machine.
Bitquery OAuth token.

Step 1: Setting Up the Project

First, create a new React project if you don’t have one already:

npx create-react-app moonshot-stream
cd moonshot-stream

Step 2: Install Required Packages

Install the necessary dependencies for WebSocket support:

npm install reconnecting-websocket

Step 3: Create the `useWebSocket` Hook

The useWebSocket hook will manage the WebSocket connection, handle reconnection attempts, and process the incoming data.

1. `useWebSocket.js` - Custom WebSocket Hook

This file contains a custom React hook named useWebSocket, which manages the WebSocket connection.

Step 1: Initialize State Variables
```
const [data, setData] = useState(null);
const [error, setError] = useState(null);
const [isConnected, setIsConnected] = useState(false);
const [retryCount, setRetryCount] = useState(0);
```
- data: Stores the incoming data from the WebSocket.
- error: Stores any error messages that may occur during connection.
- isConnected: Tracks whether the WebSocket is currently connected.
- retryCount: Counts the number of reconnection attempts made.
Step 2: Define the useEffect Hook
```
useEffect(() => {
  const connectWebSocket = () => {
    const ws = new ReconnectingWebSocket(url, ["graphql-ws"], options);
```
- useEffect is used to initiate the WebSocket connection when the component mounts or when the retryCount changes.
- connectWebSocket function is defined inside the useEffect to handle the connection logic.

Step 3: Handle WebSocket Events

onopen Event

ws.onopen = () => {
  setIsConnected(true);
  setRetryCount(0);
  ws.send(JSON.stringify({ type: "connection_init" }));

  setTimeout(() => {
    ws.send(
      JSON.stringify({
        type: "start",
        id: "1",
        payload: { query },
      })
    );
  }, 1000);
};

onopen: Triggered when the WebSocket connection is established.
Sends an initial connection_init message.
Sends the GraphQL query after a short delay.

onmessage Event

ws.onmessage = (event) => {
  const response = JSON.parse(event.data);
  if (response.type === "data") {
    setData(response.payload.data);
  }
};

onmessage: Triggered when a message is received from the server.
Parses the JSON data and updates the data state with the payload.

onclose Event

ws.onclose = () => {
  setIsConnected(false);
  if (retryCount < maxRetries) {
    setRetryCount(retryCount + 1);
    setTimeout(connectWebSocket, 2000);
  } else {
    setError("Max retry attempts reached. Could not connect to Bitquery.");
  }
};

onclose: Triggered when the WebSocket connection is closed.
Attempts to reconnect if the maximum retry count has not been reached.

onerror Event

ws.onerror = (event) => {
  console.error("WebSocket Error:", event);
  setError("WebSocket error occurred. See console for details.");
};

onerror: Triggered when an error occurs with the WebSocket.
Logs the error to the console and updates the error state.

Step 4: Close Function
```
return () => {
  ws.close();
};
```
- Ensures that the WebSocket connection is properly closed when the component unmounts.
Step 5: Return Values
```
return { data, error, isConnected };
```
- The hook returns the current state values (data, error, isConnected) to be used in the component.

Step 4: `App.js` - Main Component

This file contains the main React component that uses the useWebSocket hook to display the data.

Step 1: Define the GraphQL Query

const query = `
 subscription MyQuery {
    Solana {
      DEXTrades(
        where: {
          Trade: { Dex: { ProtocolFamily: { is: "Moonshot" } } }
          Transaction: { Result: { Success: true } }
        }
      ) {
        Instruction {
          Program {
            Method
          }
        }
        Trade {
          Dex {
            ProtocolFamily
            ProtocolName
          }
          Buy {
            Amount
            Account {
              Address
            }
            Currency {
              Name
              Symbol
              MintAddress
              Decimals
              Fungible
              Uri
            }
          }
          Sell {
            Amount
            Account {
              Address
            }
            Currency {
              Name
              Symbol
              MintAddress
              Decimals
              Fungible
              Uri
            }
          }
        }
        Transaction {
          Signature
        }
      }
    }
  }
`;

This query subscribes to real-time data from the Solana blockchain, filtering for DEX trades related to the "Moonshot" protocol.

Step 2: Define the WebSocket URL and Options

const url = "wss://streaming.bitquery.io/eap?token=YOUR_TOKEN";
const options = {
  maxReconnectionDelay: 10000,
  minReconnectionDelay: 1000,
  reconnectionDelayGrowFactor: 1.3,
  connectionTimeout: 5000,
  maxRetries: Infinity,
  debug: true,
};

url: The WebSocket endpoint, including your Bitquery Token.
options: Configuration for the WebSocket connection, such as reconnection delays and retry limits.

Step 3: Use the useWebSocket Hook
```
const { data, error, isConnected } = useWebSocket(url, options, query);
```
- The hook is called with the url, options, and query, and returns the current connection status, any errors, and the received data.

Step 4: Render the Component

return (
  <div>
    <h1>Bitquery WebSocket</h1>
    <p>Status: {isConnected ? "Connected" : "Disconnected"}</p>
    {error && <p>Error: {error}</p>}
    {data ? (
      <table>
        <tbody>
          <tr>
            <th>Protocol Family</th>
            <td>{data.Solana.DEXTrades[0].Trade.Dex.ProtocolFamily}</td>
          </tr>
          <tr>
            <th>Protocol Name</th>
            <td>{data.Solana.DEXTrades[0].Trade.Dex.ProtocolName}</td>
          </tr>
          <tr>
            <th>Buy Amount</th>
            <td>{data.Solana.DEXTrades[0].Trade.Buy.Amount}</td>
          </tr>
          <tr>
            <th>Buy Currency</th>
            <td>{data.Solana.DEXTrades[0].Trade.Buy.Currency.Symbol}</td>
          </tr>
          <tr>
            <th>Sell Amount</th>
            <td>{data.Solana.DEXTrades[0].Trade.Sell.Amount}</td>
          </tr>
          <tr>
            <th>Sell Currency</th>
            <td>{data.Solana.DEXTrades[0].Trade.Sell.Currency.Symbol}</td>
          </tr>
          <tr>
            <th>Transaction Signature</th>
            <td>{data.Solana.DEXTrades[0].Transaction.Signature}</td>
          </tr>
        </tbody>
      </table>
    ) : (
      <p>Loading data...</p>
    )}
  </div>
);

The component renders the connection status, any errors, and the data in a table format if available.
If the data is not yet available, it displays a "Loading data..." message.
